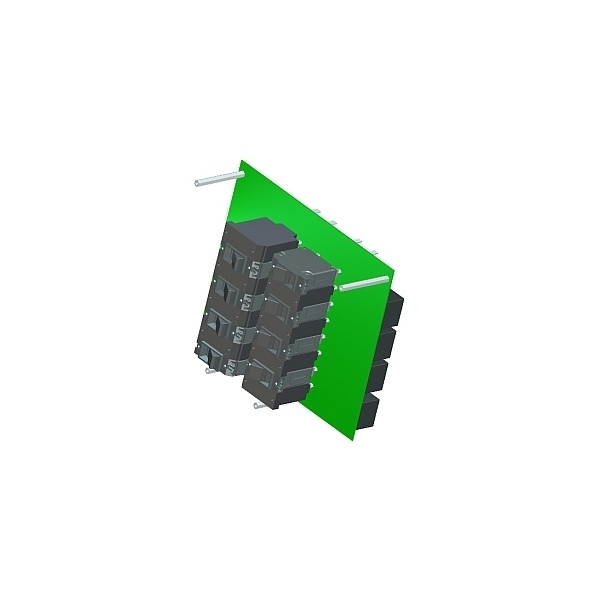

The E-Plex 439DMAC has been designed to simplify electronic systems wiring by providing more control over AC loads. The module provides AC distribution and control for 110 and 220 single and split phase applications. Hydraulic magnetic circuit breakers provide traditional circuit protection. The 439DMAC supports a combination of single and double pole breakers. Manual override capabilities are provided through the use of a user defined default relay state with operation via traditional circuit breakers. The 439DMAC can be combined with the 336PFM or the 442EMS for a robust AC energy management solution.
Key Features
- 75A max current per bus
- 20A max current per channel
- 16 channels maximum
- Isolation between high and low voltage systems
- Independent hydraulic magnetic circuit breakers Single and double pole breakers available
- Circuit breaker status monitoring
- User defined default relay state with operation via traditional circuit breakers providing manual override capabilities
- LEN value 2
Design Specifications
- Vibration: Tested to Lloyds Registered approval vibration test 2
- Transient voltage suppression: EN6100-6-1
- PCB characteristics: UL94V-0
- Operating Temperature: -20°C to 60°C
- Storage Temperature: -40°C to 85°C
- Operating Humidity: 5% to 75% (non-condensing)
